Rubber Lagging

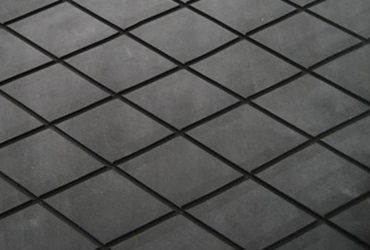

Plain Rubber Sheet with CN Layer

Product description: Plain Rubber Sheet with CN Layer offerd by CVUL, is designed to use as an ideal products for pulley lagging and rubber lining in heavy duty materials handing system. It's a specially blended rubber co
INQUIRY

Plain Rubber Sheet with CN Layer offerd by CVUL, is designed to use as an ideal products for pulley lagging and rubber lining in heavy duty materials handing system. It's a specially blended rubber compound, which is made from a formulated mixture of Butadiene rubber, natural rubber and chloroprene rubber.

It has excellent resistance to tear, large particle impact and dry sliding abrasion caused by sharp and heavy materials. It offers excellent flexibility and enhances the movement of material fines, eliminating caking and prevent materials build-up when mixed with larger particles.

CVUL plain rubber Lagging is supplied with a special CN Bonding Layer to achieve ultimate adhesion when bonded to metal surfaces.
CVUL Plain rubber sheet has superb physical properties, including mechanical strength and cut resistance, which is suitable for wear protection also.

Advantages

● Excllent wear and tear resistance.
● Durable and long life span.
● Low operation noise.

Technical Data
Color	Black
Elastomer	SBR
Specific Density	1.25 g/cm3
Hardness	60±5 Shore A
Tensile Strength	17.5 N/ mm2
Elongation	450 % Min
Abrasion	95 mm3 Max

Plain Rubber Sheet with CN Layer -CVUL
Item No	Size (mm)
PRS-815	8 x 1500 x 10000
PRS-820	8 x 2000 x 10000
PRS-1015	10 x 1500 x 10000
PRS-1020	10 x 2000 x 10000
PRS-1215	12 x 1500 x 10000
PRS-1220	12 x 2000 x 10000
PRS-1515	15 x 1500 x 10000
PRS-1520	15 x 2000 x 10000
