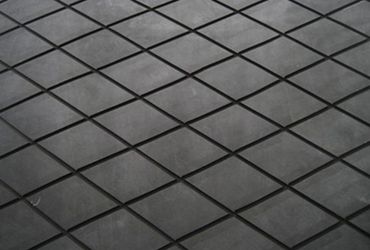

Pulley Lagging Mini Diamond

Product description: CVUL Pulley Lagging Mini Diamond Profile is used for improving the friction coefficient between the drive pulley and the conveyor belt. It prevents materials sticking and contributes to the linear mov
INQUIRY

CVUL Pulley Lagging Mini Diamond Profile is used for improving the friction coefficient between the drive pulley and the conveyor belt. It prevents materials sticking and contributes to the linear movement of the conveyor belt. It sheds excess water and dirt through the profile grooves and reducing materials build-up while reducing abrasion on the conveyor belt itself. Rubber pulley lagging mini diamond profile is ideal for driven pulleys with medium and low tension belts.

Advantages
● Made from top grade synthetic rubber.
● Excellent abrasion reisistance and Exceptional grip.
● CN bonding layer improves adhesion when bonded to steel pulley surfaces.
● Reduces wear and corrosion of the pulley.
● Allows for easy drainage of water and slurry

Technical Data
Color	Black
Elastomer	SBR
Specific Density	1.25 g/cm3
Hardness	60±5 Shore A
Tensile Strength	17.5 N/ mm2
Elongation	450 % Min
Abrasion	95 mm3 Max

Pulley Lagging Mini Diamond - CVUL
Item No	Size (mm)
RPLM-815	8 x 1500 x 10000
RPLM-820	8 x 2000 x 10000
RPLM-1015	10 x 1500 x 10000
RPLM-1020	10 x 2000 x 10000
RPLM-1215	12 x 1500 x 10000
RPLM-1220	12 x 2000 x 10000
RPLM-1515	15 x 1500 x 10000
RPLM-1520	15 x 2000 x 10000
