Shock-absorbing Device

Impact Beds

Product description: CVUL Impact Beds is supplied to use under the material loading and transfer points to absorb the impact energy of dropping bulk material on heavy duty conevyor system. Impact beds mainly consists of i
INQUIRY

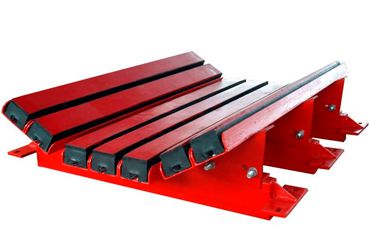

CVUL Impact Beds is supplied to use under the material loading and transfer points to absorb the impact energy of dropping bulk material on heavy duty conevyor system.
Impact beds mainly consists of impact bars and the steel supporting device. Impact bars have a cover plate made of UHMWPE polyethylene with a slip coefficient of 0.07 and 0.1.It facilitates the movement of the conveyor belts. With the aluminium T profile inside, it's more easier to replace compare with the traditional conveyor roller.

The steel supporting device of the impact bed is made up of strengthen channel, bracket and connectors. They are made of Q235 Steel. It's stable and can decrease the damage of belt and extend the belt life.

Advantages

● Robust and highly impact resistant.
● Aluminium T profile & T bolts, easy replacement.
● Avoid material splashing.
● Low maintenance cost.
● Surface contact between impact and belt let stress evenly spread on belt.
● UHMWPE plate offers lowest friction, effectively reduces the damage to conveyor belt cause by bulk material dropping.
● Various type is available for different conveyor belt width.

Impact Bed - CVUL
Belt Width	Specification for Impact Bars *(Lengthwidththickness)*	Number of Bars (pc)
500 mm	*1000mm100mm75mm*	4
650 mm	*1000mm100mm75mm*	6
800 mm	*1200mm100mm75mm*	7
1000 mm	*1200mm100mm75mm*	8
1200 mm	*1400mm100mm75mm*	10
1400 mm	*1600mm100mm75mm*	13
1600 mm	*1600mm100mm75mm*	15
1800 mm	*2000mm100mm75mm*	16
2000 mm	*2000mm100mm75mm*	18
