Shock-absorbing Device

Impact Bar

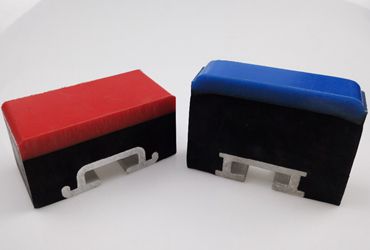

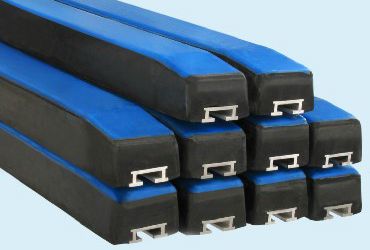

Product description: CVUL Impact Bar is a combination of rubber, aluminium T profile and ultra-high UHMWPE polyethylene plate, which are treated in a special way and bonded by hot vulcanizing.
INQUIRY

CVUL Impact Bar is a combination of rubber, aluminium T profile and ultra-high UHMWPE polyethylene plate, which are treated in a special way and bonded by hot vulcanizing.
Impact bars are used at feeding area to make dropping bulk materials soft loading and absorb the high impact energy. It can replace the traditional cushion rollers and is widely adoptted by the belt conveyor systems from power plants, building materials, steel plant, ports and mining industries.

Advantages

● Avoids the damage to the belt through the contact between the bar and surface of belt.
● Prevent the conveyor belt damage
● Damp the energy of the load falling on the belt.
● T-Bolt & aluminium T profile ensure easy and fast installation
● UHMWPE polyethylene offers a excllent low friction coefficient from 0.07 to 0.1.
● Guiding angle on UHMWPE board of impact bar guarantees belt running smoothly.
● Effectively eliminate the spillage or material scattering caused by unequal of the stress on the belt.

Impact Bar -Techincal Data - CVUL
Rubber Hardness (Shore A)	60+/-5
UHMWPE Color	Blue/White/Red
Coefficient of surface friction for UHMWPE (%)	0.07
Tension (N/mm)	19.0
Thickness of UHMWPE Thickness (mm)	12/15/20

Specification
Item No	Height (mm)	Width (mm)	Length (mm)
IMPB-60	50/75/100	100	600
IMPB-70	50/75/100	100	700
IMPB-75	50/75/100	100	750
IMPB-80	50/75/100	100	800
IMPB-90	50/75/100	100	900
IMPB-100	50/75/100	100	1000
IMPB-122	50/75/100	100	1220
IMPB-140	50/75/100	100	1400
IMPB-152	50/75/100	100	1524
