Conveyor Belt Vulcanizing Equipments

Belt Edge Repair Press

Product description: CVUL Belt Edge Repair Press is specially designed for mending belt edge damages via hot vulcanizing, this repairing will be done in 3 hours without removing the conveyor rollers, and the conveyor will
INQUIRY

Due to deviation or the quality of the conveyor itself, belt edge is easily damaged on both sides. It will affect the normal running of the conveyor.

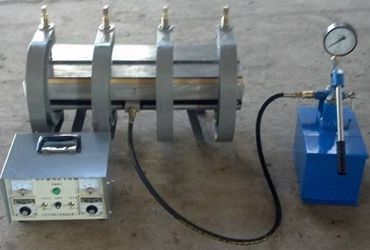

CVUL Belt Edge Repair Press is specially designed for mending belt edge damages via hot vulcanizing, this repairing will be done in 3 hours without removing the conveyor rollers, and the conveyor will be back to service quickly.

Edge Repair Press is light-weight and portable. It is suitable for repairs on both fabric and steelcord conveyor belt, in-house or on-site.

Advantages

● Reliable performance and long service life.
● Light-weight and portable.
● Suitable for repairs on both fabric and steelcord belt.

Belt edge repair press - CVUL
Item No	BERP-2
Type of conveyor belt Canvas	Nylon and steelcord belt
Width range (mm)	650-2200
Maximum size for belt repairing (mm)	250×600
Heating plate size (mm)	320×700
Vulcanizing temperature: 145 ℃	Adjustable 0-200 ℃
Total power (Kw)	3.6
Voltage (V)	220/380/440/660
Vulcanizing pressure (Mpa)	0.8
Warm up time (mins)	＜30
